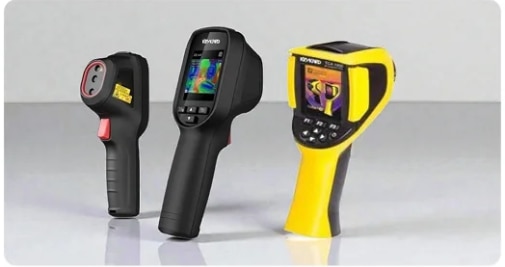

Thermal Imager

This handheld Thermal Imager is designed for quick and reliable thermal inspections in energy audits and industrial, electrical, and mechanical maintenance applications. It offers fast startup, simple one-hand operation, focus-free imaging, long battery life, and rugged construction, making it ideal for field use.

Technical Specifications

Detector Resolution: 80 × 80 pixels

Detector Type: UFPA Microbolometer (8–14 μm)

Thermal Sensitivity: 80 mK @ 30°C

Frame Rate: 9 Hz

Temperature Range: –20°C to +250°C

Measurement Accuracy: ±2°C or ±2% of reading

Field of View: 20° × 20°

IFOV: 4.4 mrad

Focus: Fixed (Focus-Free)

Minimum Focus Distance: 40 cm

Visual Image: 320 × 240 pixels

Display: 2.8 inch Color Screen

Image Modes: Thermal + Visual + Merge

Measurement Tools: Cursor, Auto, Min/Max, Isotherm

Adjustable Parameters: Cursor, Auto, Min/Max, Isotherm

Storage: 2 GB micro SD (Up to 32 GB)

Connectivity: USB & Bluetooth

Battery: NiMH Rechargeable – 13 Hours

Protection: IP54

Drop Resistance: 2 Meter

Weight: Approx. 700 g
